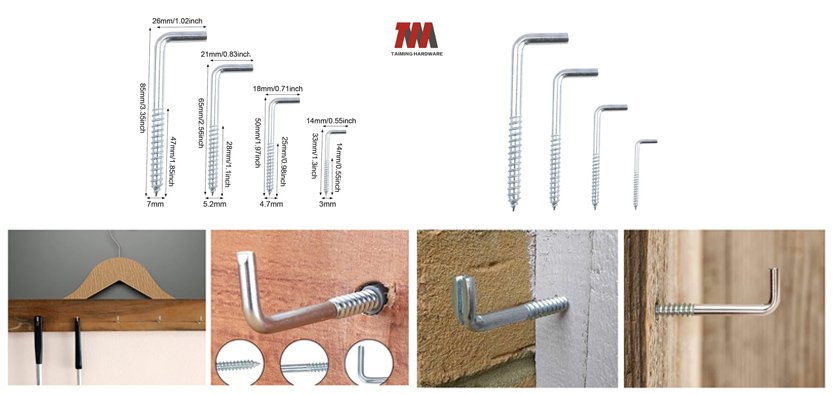

L Shape Tapping Screws Grade 304 DIN7504 – How Do They Improve Fastening Strength and Corrosion Resistance?

Published: November 2025 | Reading Time: 18 minutes

When you need reliable fastening solutions that can handle both mechanical stress and harsh environmental conditions, understanding the advantages of specialized fastener designs becomes essential. The L-shaped tapping screw manufactured to Grade 304 stainless steel specifications and conforming to DIN7504 standards represents a sophisticated approach to solving complex assembly challenges across multiple industries.

The unique geometry of the L-shaped design combines with the self-drilling capabilities outlined in the DIN7504 specification to create a fastener that addresses several practical problems simultaneously. Where conventional screws might require separate drilling operations or struggle with material deformation, this specialized design offers an integrated solution that saves time while improving connection integrity.

What Makes the L-Shape Configuration Unique in Tapping Screw Design

The L-shaped geometry distinguishes itself from conventional straight-shank fasteners through several functional advantages that become apparent during both installation and long-term service. Unlike standard self-tapping screws that rely solely on axial force for retention, the angular configuration creates additional mechanical advantages.

When you examine the design closely, the perpendicular bend in the shaft introduces a horizontal load component that works differently from traditional fastening methods. This right-angle orientation allows the fastener to function simultaneously as both a structural connector and a hanging point, which explains its popularity in applications ranging from electrical cabinet assembly to display fixture installation.

Geometric Advantages of the Right-Angle Design

The bend in the L-shaped profile creates what engineers call a “moment arm” – essentially a lever that helps distribute forces across a broader area of the base material. When lateral loads are applied to the horizontal portion of the fastener, the vertical threaded section resists withdrawal through thread engagement, while the horizontal section provides a stable attachment point.

This dual-function capability means you can use these screws for applications that would otherwise require two separate fasteners or a more complex assembly sequence. For example, when mounting a cable management bracket, the vertical threading secures the assembly to the mounting surface, while the horizontal portion provides a dedicated channel for routing wires or supporting additional components.

Thread Engagement Characteristics

The threading pattern on L-shaped tapping screws follows the DIN7504 specification, which defines precise dimensions for thread pitch, major diameter, and cutting edge geometry. These specifications ensure consistent thread formation across different base materials, from thin-gauge sheet metal to thicker structural components.

What makes the thread engagement particularly effective is the combination of cutting action and thread-forming capability. As the fastener enters the material, the drill point creates a pilot hole sized precisely for the following threads to cut clean, sharp engagement surfaces. This process minimizes material displacement that could cause cracking or deformation around the fastener entry point.

Understanding Grade 304 Stainless Steel Properties and Performance

The designation “Grade 304” refers to a specific austenitic stainless steel composition that has become the most widely specified corrosion-resistant alloy in fastener manufacturing. The material’s popularity stems from its balanced combination of mechanical properties, corrosion resistance, and cost-effectiveness compared to higher-grade alternatives.

Chemical Composition and Its Impact

Grade 304 stainless steel contains approximately eighteen percent chromium and eight percent nickel, often referred to in industry shorthand as “18-8 stainless.” These two elements work together to create the material’s characteristic properties. The chromium content produces a passive oxide layer on the surface that self-repairs when scratched, while the nickel contributes to the material’s ductility and resistance to stress corrosion cracking.

The carbon content in Grade 304 is intentionally kept below 0.08 percent. This low carbon level prevents chromium carbide precipitation during welding or exposure to elevated temperatures, which could otherwise compromise the material’s corrosion resistance along grain boundaries. For fastener applications, this means the screws maintain their protective properties even in assemblies that undergo thermal cycling.

Mechanical Properties That Matter for Fasteners

When specifying fasteners for load-bearing applications, you need to consider several mechanical characteristics beyond basic tensile strength. Grade 304 stainless steel exhibits a yield strength of approximately 215 MPa in the annealed condition, which increases significantly through cold working during the manufacturing process.

The work-hardening behavior of austenitic stainless steel becomes particularly relevant for self-tapping screws. During thread rolling operations, the material undergoes controlled deformation that increases surface hardness while maintaining core ductility. This gradient hardness profile creates threads that resist wear and galling while the fastener body retains enough flexibility to avoid brittle failure under shock loads.

Elongation characteristics also play an important role in fastener performance. Grade 304 typically shows elongation values of 40 percent or higher, which means the material can accommodate significant deformation before fracture. For L-shaped tapping screws, this ductility proves valuable during installation, as the bending stresses induced when driving the fastener into hard materials don’t cause premature failure.

Temperature Range and Stability

Operating temperature affects both the mechanical properties and corrosion resistance of stainless steel fasteners. Grade 304 maintains useful strength from cryogenic temperatures up to approximately 425 degrees Celsius in continuous service. Beyond this temperature, accelerated oxidation and loss of mechanical properties become concerns.

For most fastening applications, ambient temperature operation falls well within the material’s comfort zone. However, understanding these limits becomes important in specialized applications such as automotive exhaust systems, industrial oven assemblies, or equipment that undergoes thermal sterilization cycles. In such cases, you might need to consider whether Grade 304 provides sufficient performance margins or whether an upgraded alloy makes more sense.

Understanding DIN7504 Standard Requirements and Specifications

The DIN7504 standard, developed by the German Institute for Standardization, establishes comprehensive requirements for self-drilling tapping screws. This specification covers everything from dimensional tolerances to performance testing protocols, ensuring that fasteners bearing the DIN7504 designation meet consistent quality benchmarks regardless of manufacturer.

What the Standard Covers

DIN7504 addresses several critical aspects of self-drilling screw design and manufacturing. The standard defines drill point geometry, including the point angle, flute design, and cutting edge configuration. These specifications ensure that the fastener can penetrate sheet metal efficiently without excessive wobble or walking across the work surface.

Thread dimensions receive detailed attention in the standard, with specifications for major diameter, minor diameter, pitch, and thread angle. The thread profile must meet precise tolerance ranges to ensure consistent torque-to-clamp-load relationships and to prevent thread stripping during installation or service.

Beyond geometry, DIN7504 establishes performance requirements that fasteners must satisfy. These include drilling capacity tests that verify a screw can penetrate specified material thicknesses, thread-forming tests that check thread engagement quality, and torsional strength testing that confirms the fastener won’t twist off before achieving proper installation torque.

ISO Equivalents and International Recognition

While DIN7504 originated as a German national standard, the specifications have achieved wide international recognition. The equivalent ISO standards – ISO 15480, ISO 15481, and ISO 15482 – harmonize with DIN7504 requirements, making it easier to source compliant fasteners globally.

This international standardization matters when you’re managing supply chains across multiple regions. A fastener specified as DIN7504 compliant in Europe should perform identically to an ISO 15480-compliant fastener sourced in Asia or North America, reducing the need for extensive qualification testing when switching suppliers.

Drill Point Classifications

DIN7504 recognizes different drill point designs optimized for various applications and material thicknesses. The classification system helps you select the appropriate screw configuration for your specific assembly requirements:

• Type P: Designed for thin-gauge materials up to approximately 0.9mm thickness. Features a shorter drill point with a shallower flute angle optimized for quick penetration of sheet metal.
• Type R: Suitable for medium-thickness materials up to about 2.5mm. The drill point length and flute depth increase compared to Type P to handle the additional material thickness.
• Type K: Engineered for thicker materials and structural steel applications. Extended drill point length and aggressive cutting geometry enable penetration of materials exceeding 6mm thickness.

For L-shaped tapping screws, the drill point classification becomes particularly important because the angular configuration affects chip evacuation during the drilling phase. Type selection should account not just for material thickness but also for the accessibility of the installation location and the clearance available for chip ejection.

Head Style Variations Within the Standard

While this article focuses on L-shaped configurations, DIN7504 encompasses multiple head styles, each serving different functional requirements. Understanding these variations helps you appreciate how the L-shape fits into the broader fastener ecosystem:

• Hex washer head designs provide high torque capacity and built-in load distribution
• Pan head Phillips or Pozidriv options suit applications requiring flush or near-flush mounting
• Flat head designs enable countersunk installations where fastener heads must sit below the work surface
• L-shaped configurations like those discussed here serve specialized hanging and mounting applications

How L-Shape Design Improves Fastening Strength in Real-World Applications

The mechanical advantage provided by the L-shaped configuration extends beyond simple geometric considerations. When you analyze the load paths and stress distribution patterns in assemblies using these fasteners, several strength-enhancing characteristics become evident.

Load Distribution Mechanisms

Traditional straight-shank fasteners concentrate withdrawal forces along the thread engagement length. The L-shaped design redistributes these loads by introducing a bending moment component that activates a broader engagement zone in the base material. Think of it as creating a mechanical interlock that functions somewhat like a toggle bolt, though without requiring access to the backside of the panel.

When lateral loads are applied to the horizontal arm of the L-shape, the vertical threaded portion experiences both tensile stress (trying to pull the fastener out) and bending stress (trying to rotate the fastener). The combination of these stress modes actually increases the effective contact area between the threads and the base material, improving resistance to loosening under vibration or cyclic loading.

Thread Engagement Quality

The self-drilling capability specified in DIN7504 plays a crucial role in achieving optimal thread engagement. By eliminating the need for a separate drilling operation, you avoid common problems associated with misaligned or oversized pilot holes. The integrated drill point creates a hole sized precisely for the following threads, ensuring maximum thread contact and minimizing gaps where movement could occur.

Grade 304 stainless steel’s work-hardening characteristics contribute to thread strength in an interesting way. As the threads cut or form into the base material, the localized deformation increases the hardness of the engaged thread flanks. This creates a situation where the threads actually become stronger through use, up to a point, rather than weakening immediately as softer materials might.

Resistance to Pull-Through

One of the persistent challenges with fastening thin-gauge materials involves pull-through failure, where the fastener tears through the base material rather than failing at the threads. The L-shaped design addresses this vulnerability by creating a larger bearing surface area against the material surface.

The horizontal portion of the L-shape acts somewhat like an integrated washer, spreading withdrawal loads across a wider area. This becomes particularly valuable in applications involving sheet metal, fiberglass panels, or composite materials where localized stress concentration could initiate tearing or delamination.

Installation Torque and Preload

Achieving proper preload during installation directly affects fastener strength and joint reliability. The L-shaped configuration requires different torque management compared to conventional screws because the angular geometry introduces additional bending stresses during the final tightening phase.

Recommended installation procedures typically call for tightening until the horizontal arm makes firm contact with the mounting surface, then applying a quarter to half turn additional rotation. This ensures adequate thread engagement while avoiding over-torquing that could strip threads or deform the horizontal arm.

The self-drilling action helps here because it eliminates variables associated with pilot hole preparation. When every fastener creates its own precisely sized hole, you get more consistent torque-to-preload relationships across multiple fasteners in an assembly. This consistency translates to more predictable joint behavior and reduced risk of some fasteners being under-torqued while others are over-torqued.

Corrosion Resistance Mechanisms in Grade 304 Stainless Steel Fasteners

Understanding how Grade 304 stainless steel resists corrosion requires looking beyond the surface – literally. The protection mechanisms operate at microscopic and molecular levels, creating a self-maintaining barrier that regenerates even after damage.

Passive Film Formation and Regeneration

When Grade 304 stainless steel encounters oxygen, a thin chromium oxide film forms spontaneously on the surface. This passive layer, typically only a few nanometers thick, prevents further oxidation of the underlying metal. Unlike paint or plating that can chip or wear away, the passive film continuously reforms itself whenever fresh metal is exposed to oxygen-containing environments.

This self-healing property becomes particularly valuable for fasteners because installation inevitably scratches the surface. As you drive an L-shaped tapping screw into place, the threads scrape against the base material, and the horizontal arm may drag across the mounting surface. Each of these interactions removes protective film, but within seconds or minutes – depending on oxygen availability – new passive film forms over the exposed areas.

The chromium oxide layer also exhibits remarkable stability across a wide pH range. From mildly acidic to moderately alkaline environments, the passive film maintains its protective properties. This explains why Grade 304 fasteners perform reliably in diverse applications from food processing equipment to outdoor architectural installations.

Environmental Performance Ranges

While Grade 304 offers excellent corrosion resistance in many environments, understanding its limitations helps you make appropriate material selections for specific applications:

Pitting and Crevice Corrosion Resistance

Two forms of localized corrosion deserve special attention when working with Grade 304 stainless steel: pitting and crevice corrosion. Both can occur in chloride-containing environments even when general surface corrosion remains minimal.

Pitting develops when the passive film breaks down at localized spots, creating small but deep cavities in the metal surface. Once initiated, pits can propagate even in relatively mild environments because the confined space within the pit develops a corrosive chemistry different from the bulk environment. Grade 304’s pitting resistance performs well up to chloride concentrations of approximately 150-400 mg/L at ambient temperatures, which covers most inland applications.

Crevice corrosion occurs in confined spaces where oxygen depletion prevents passive film regeneration. For L-shaped tapping screws, potential crevice locations include the interface between the horizontal arm and the mounting surface, and within the thread engagement zone. Design details that maximize drainage and airflow help mitigate crevice corrosion risks.

Galvanic Considerations in Mixed-Material Assemblies

When Grade 304 stainless steel fasteners join dissimilar metals, galvanic corrosion becomes a potential concern. The relative position of different metals in the galvanic series determines whether and how quickly corrosion accelerates in the presence of an electrolyte (such as moisture with dissolved salts).

Grade 304 stainless steel sits toward the noble (cathodic) end of the galvanic series, meaning it typically acts as the cathode when coupled with most structural metals. This generally protects the stainless fastener while potentially accelerating corrosion of the base material. However, the small surface area ratio (fastener-to-base material) usually prevents significant problems in most applications.

Aluminum represents a special case because it sits considerably more active (anodic) than stainless steel in the galvanic series. When using Grade 304 L-shaped tapping screws with aluminum panels or structures, consider these approaches:

• Apply insulating coatings or gaskets between the fastener and aluminum surface
• Use aluminum-compatible thread-locking compounds that also provide moisture barrier properties
• Specify anodized aluminum, which provides better natural protection than bare material
• In critical applications, consider aluminum fasteners or st
