Comprehensive Guide to Terminal Block Types for Industrial Applications

In industrial electrical systems, ensuring secure and efficient connections is paramount. Terminal blocks serve as essential components that facilitate the safe and organized connection of wires within control panels, machinery, and various equipment. This guide delves into the diverse types of terminal blocks, their functionalities, and their applications in industrial settings.

Understanding Terminal Blocks

Terminal blocks are modular, insulated devices designed to connect two or more wires together. They provide a safe and organized method for managing complex wiring systems, allowing for easy maintenance, troubleshooting, and system modifications. Typically mounted on DIN rails within control panels, terminal blocks come in various designs to accommodate different connection requirements.

Classification of Terminal Blocks

1. Connection Method

• Screw Clamp Terminal Blocks: Utilize screws to secure the wire, offering a reliable connection suitable for various wire sizes.
• Spring Clamp Terminal Blocks: Employ a spring mechanism to hold the wire, allowing for quicker installation without the need for tools.
• Push-in Terminal Blocks: Designed for easy wire insertion without tools, ideal for applications requiring frequent wiring changes.

2. Mounting Style

• DIN Rail Mounted Terminal Blocks: Standard in industrial applications, these blocks snap onto DIN rails, facilitating organized and scalable wiring systems.
• Panel Mounted Terminal Blocks: Attached directly to panels, suitable for applications where DIN rails are not utilized.

3. Functional Types

• Feed-through Terminal Blocks: Allow for the connection of two wires, one on each side, commonly used for simple wire-to-wire connections.
• Ground Terminal Blocks: Provide a secure connection point for grounding wires, ensuring safety and compliance with electrical standards.
• Fuse Terminal Blocks: Incorporate a fuse within the block to protect circuits from overcurrent, often featuring indicators for fuse status.
• Disconnect Terminal Blocks: Enable the disconnection of circuits without removing wiring, facilitating maintenance and testing.
• Multi-level Terminal Blocks: Feature multiple connection levels within a single block, saving space and allowing for complex wiring configurations.

Terminal Block Screw Explained

The terminal block screw is a crucial fastening element within screw-type terminal blocks. It provides a mechanical and electrical connection by tightening onto the conductor and ensuring a secure grip. Typically made from hardened steel or brass with surface treatments for corrosion resistance, these screws are engineered to maintain consistent pressure on the wire. In industrial settings, the screw design allows for repeated tightening cycles, making them suitable for maintenance-heavy environments such as automation control panels, energy distribution systems, and large-scale machinery. Choosing a high-quality terminal block screw ensures stable current flow, reduces the risk of loose connections, and contributes to long-term system reliability.

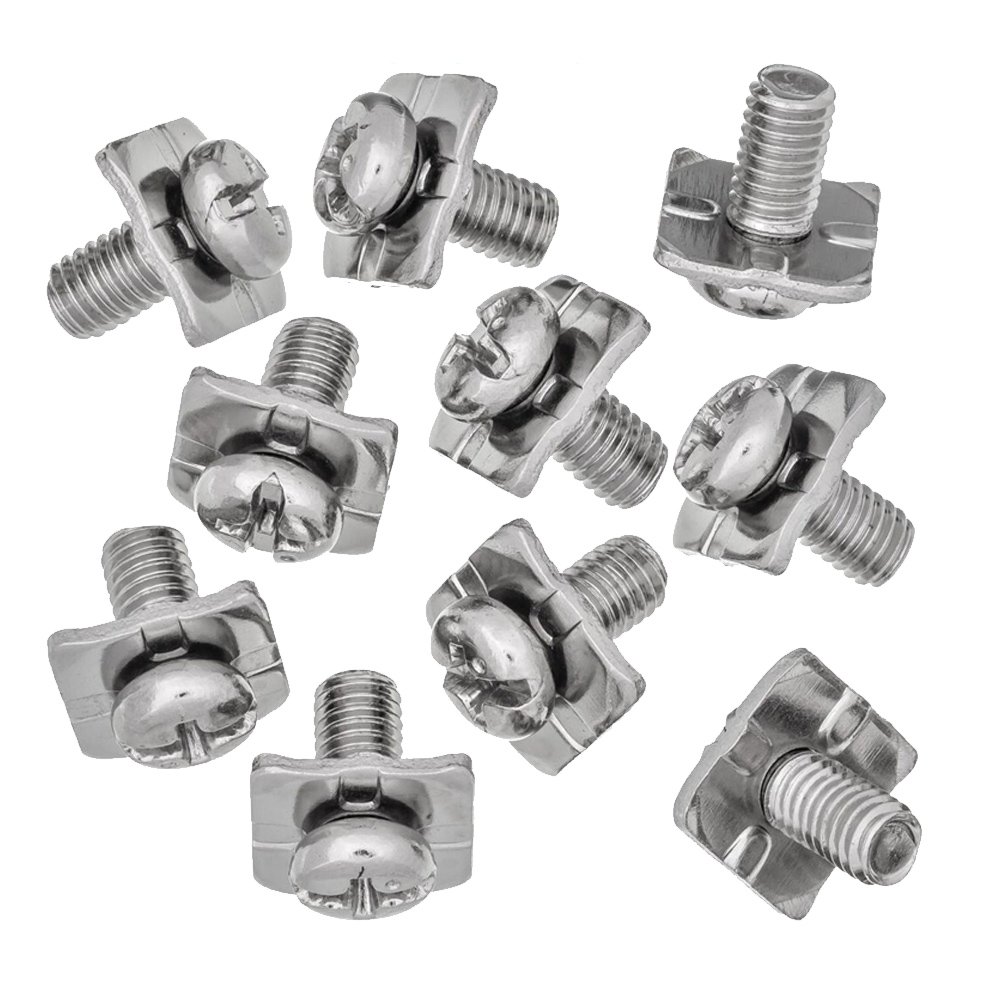

For example, this square washer screw meets ASTM and DIN standards and is designed for industrial-grade terminal connections.

Selecting the Appropriate Terminal Block

Choosing the right terminal block involves considering several factors:

• Electrical Requirements: Assess the voltage and current ratings to ensure compatibility with your system.
• Wire Specifications: Match the terminal block to the wire size and type (solid or stranded) used in your application.
• Environmental Conditions: Consider factors such as temperature, vibration, and exposure to chemicals or moisture.
• Installation and Maintenance Needs: Evaluate the ease of installation and the necessity for frequent maintenance or modifications.

Applications in Industrial Settings

Terminal blocks are integral to various industrial applications, including:

• Control Panels: Organizing and connecting control wiring for machinery and automation systems.
• Power Distribution: Managing the distribution of electrical power within equipment and facilities.
• Signal Processing: Facilitating the transmission of signals in instrumentation and control systems.
• Safety Systems: Ensuring reliable connections in emergency shutdown systems and safety interlocks.

Conclusion

Understanding the different types of terminal blocks and their specific applications is crucial for designing and maintaining efficient industrial electrical systems. By selecting the appropriate terminal block, including consideration of high-grade terminal block screws, you can enhance the safety, reliability, and organization of your wiring infrastructure.
