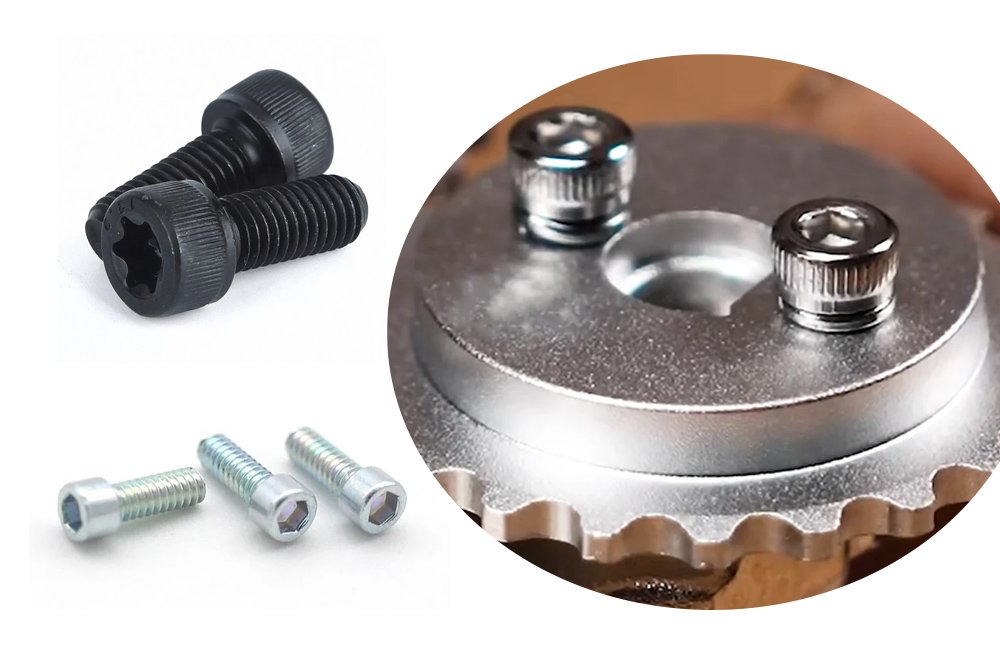

Cap Head Machine Screws Grade 304 DIN Standard – Why Do They Deliver Stronger and Cleaner Fastening?
When precision engineering meets demanding applications, the choice of fasteners becomes critical. Cap head machine screws manufactured from Grade 304 stainless steel according to DIN standards represent a convergence of metallurgical excellence and engineering precision. These fasteners have earned their reputation across industries not through marketing hype, but through consistent performance in challenging environments where failure isn’t an option.
The question that engineers, procurement specialists, and manufacturing professionals frequently ask isn’t whether these fasteners work—they clearly do. The real question centers on understanding why Grade 304 cap head machine screws conforming to DIN standards deliver measurably stronger and cleaner fastening solutions compared to alternatives. The answer lies in a combination of material science, manufacturing precision, and thoughtful design standards that have evolved over decades of industrial application.
Understanding the Foundation: What Makes DIN 912 Cap Head Machine Screws Different
The Cap Head screw designation, particularly when referring to DIN 912 specifications, describes a specific type of fastener characterized by its cylindrical head and internal hexagonal drive. This isn’t simply another variant in an endless catalog of screws—it represents a deliberate engineering choice with distinct performance characteristics.
The cylindrical head design serves multiple purposes beyond aesthetics. When a fastener sits flush or slightly recessed within a counterbored hole, it creates a clean surface profile that eliminates snagging hazards while distributing loads across a defined bearing area. The internal hexagonal socket accepts hex keys or Allen wrenches, enabling installation in confined spaces where external wrenching tools cannot reach. This combination of features makes cap head machine screws particularly valuable in assembly-intensive industries.
DIN 912 Standard Specifications: Precision in Every Dimension
The DIN 912 standard, which has largely been harmonized with ISO 4762, establishes exact dimensional tolerances for every aspect of these fasteners. Thread diameters ranging from M1.6 to M48, precise head diameter ratios, specific socket depths, and standardized thread lengths create a universal language that crosses national boundaries. When you specify a DIN 912 M8 x 25 cap head machine screw, engineers in Germany, Japan, the United States, or anywhere else know exactly what they’re getting.
Length measurements follow a specific convention: they include the threaded portion and any unthreaded shank, but exclude the head. This differs from some other fastener types and represents an important detail when calculating bolt length requirements for through-hole applications. Shorter screws typically feature full threading, while longer variants transition to partial threading with an unthreaded shank section that reduces stress concentrations in the grip length.
Grade 304 Stainless Steel: The Material Science Behind Superior Performance
The “Grade 304” designation refers to a specific austenitic stainless steel alloy, one of the most widely specified materials in fastener manufacturing. Understanding why requires examining its composition and the properties that composition delivers.
Chemical Composition and Its Practical Implications
Grade 304 stainless steel contains approximately 18% chromium and 8% nickel (often referred to as 18-8 stainless), with the balance being iron and trace elements including carbon, manganese, silicon, phosphorus, and sulfur. Each constituent plays a specific role:
- Chromium (18%): Creates the passive oxide layer that defines stainless steel’s corrosion resistance. When exposed to oxygen, chromium forms chromium oxide on the surface—a transparent, self-healing layer that prevents rust formation. This isn’t a coating that wears off; it’s an integral part of the material’s chemistry that reforms if scratched or damaged.
- Nickel (8%): Stabilizes the austenitic crystal structure, enhancing ductility and toughness. Nickel also improves corrosion resistance in reducing environments and maintains mechanical properties across a wide temperature range. The austenitic structure remains non-magnetic in the annealed condition, though cold working can induce slight magnetic properties.
- Carbon (≤0.08%): Standard 304 limits carbon to prevent sensitization during welding. When stainless steel is exposed to temperatures between 480-820°C, chromium can combine with carbon to form chromium carbides along grain boundaries. This depletes the surrounding areas of chromium, creating zones susceptible to intergranular corrosion. The low carbon content in 304 minimizes this risk.
This alloy composition delivers a remarkable combination of properties that pure metals or simpler alloys cannot match. The material resists corrosion in atmospheric environments, many aqueous solutions, and weak acids. It maintains strength and ductility from cryogenic temperatures up to approximately 800°C. It can be cold-formed, machined, and welded using standard techniques. Perhaps most importantly for fastener applications, it provides consistent, predictable performance.
Corrosion Resistance in Real-World Environments
The corrosion resistance of 304 stainless steel isn’t absolute—no material is universally resistant to all environments. However, 304 performs exceptionally well in the conditions most commonly encountered in industrial, commercial, and consumer applications.
In atmospheric environments with normal humidity and moderate industrial pollution, 304 stainless steel effectively resists rust and staining indefinitely. This makes it suitable for exterior architectural applications, transportation equipment, and processing equipment in non-aggressive environments. The passive chromium oxide layer continuously protects the underlying metal without requiring maintenance coatings or treatments.
For most industrial applications away from direct marine exposure, 304 offers an optimal balance between corrosion resistance and cost-effectiveness. It withstands water, mild acids, alkaline solutions, and most organic compounds. Food processing, pharmaceutical manufacturing, chemical processing (excluding strong acids and chlorides), and general industrial machinery regularly specify 304 for these reasons.
Why Cap Head Design Delivers Stronger Fastening
The mechanical advantages of Hexalobular socket cap head machine screws extend beyond material selection. The geometric design contributes significantly to fastening strength through multiple mechanisms.
Torque Application and Load Distribution
The hexagonal socket drive configuration provides six load-bearing surfaces compared to the four surfaces of a Phillips or square drive, or the two contact lines of a slotted drive. This increased contact area distributes driving torque more evenly, reducing stress concentrations that lead to drive stripping or cam-out.
More importantly, the geometry allows significantly higher installation torques. While a Phillips drive might strip at 2-3 N⋅m in a #2 size, an equivalent hex socket can reliably accept 8-10 N⋅m or more. This increased torque capacity translates directly to higher clamping force—the compressive force that holds mated parts together and creates friction at the joint interface.
| Screw Size | Socket Size | Recommended Torque (N⋅m) | Approximate Clamping Force (kN) |
|---|---|---|---|
| M3 | 2.5mm | 1.2 – 1.5 | 1.8 – 2.2 |
| M4 | 3mm | 2.4 – 3.0 | 3.5 – 4.2 |
| M5 | 4mm | 4.9 – 6.0 | 5.8 – 7.0 |
| M6 | 5mm | 8.5 – 10.0 | 9.2 – 11.0 |
| M8 | 6mm | 20.0 – 24.0 | 19.5 – 23.0 |
| M10 | 8mm | 39.0 – 47.0 | 32.0 – 38.0 |
| M12 | 10mm | 68.0 – 82.0 | 48.0 – 57.0 |
Note: Torque values shown are for Grade 304 stainless steel in dry conditions. Lubrication reduces friction coefficients and may require torque adjustment to achieve target clamping force.
Vibration Resistance and Joint Stability
The higher preload achievable with cap head machine screws contributes to superior vibration resistance. When a bolted joint experiences vibration or cyclical loading, relative motion between threads can gradually reduce preload—a phenomenon known as self-loosening. Higher initial preload provides a larger safety margin before functional looseness occurs.
The cylindrical head shape also contributes to joint stability. Unlike countersunk heads that concentrate bearing loads at the edge of the countersink, or rounded heads that create point contact, the flat underside of a cap head distributes bearing stress uniformly across the head diameter. This reduces the tendency for embedment—the gradual compression of material beneath the fastener head that can reduce clamping force over time.
The Cleaner Fastening Advantage: Aesthetic and Functional Benefits
The “cleaner fastening” attribute of cap head machine screws manifests in both visual appearance and functional performance. These aren’t separate benefits—they’re interconnected advantages stemming from the same design features.
Low-Profile Installation
When installed in a properly counterbored hole, a cap head screw sits flush with or slightly below the surface. This creates a smooth profile without protruding fastener heads that could snag equipment, catch clothing, or accumulate debris. In food processing equipment, pharmaceutical manufacturing, or cleanroom applications, this smooth surface profile facilitates cleaning and prevents contamination traps.
The aesthetic advantage shouldn’t be dismissed as superficial. In consumer products, industrial equipment with exposed surfaces, or architectural metalwork, visible fasteners affect perceived quality. A grid of neatly recessed cap head screws conveys precision and attention to detail in ways that mixed-head conventional screws cannot match.
Reduced Maintenance Requirements
The combination of 304 stainless steel’s corrosion resistance and the recessed installation creates a low-maintenance fastening solution. Unlike exposed steel fasteners that require painting, zinc plating touch-up, or eventual replacement due to rust, properly installed 304 cap head screws maintain their appearance and function for decades with minimal attention.
The hex socket drive remains protected from environmental exposure when the screw is fully seated. Unlike external drives that can accumulate paint, debris, or corrosion that interferes with future service, the recessed socket stays relatively clean. When disassembly becomes necessary years after installation, hex sockets typically remain serviceable while external drives often require drill-out or destruction.
Application-Specific Advantages Across Industries
Different industries leverage cap head machine screws in Grade 304 for distinct reasons, though the fundamental benefits remain consistent.
Machinery Manufacturing
Equipment frames, guard panels, access covers, and component mounting. The vibration resistance and high clamping force prevent loosening in dynamic environments, while the corrosion resistance eliminates rust staining on precision surfaces.
Food Processing Equipment
Conveyor systems, processing machinery, inspection equipment, and packaging lines. 304 stainless steel meets food-grade material requirements, and the smooth profile facilitates sanitary cleaning between production runs.
Medical Devices
Diagnostic equipment, surgical instruments, patient care devices, and laboratory apparatus. Biocompatibility, sterilization compatibility, and corrosion resistance in bodily fluids make 304 appropriate for many medical applications.
Electronics Enclosures
Control panels, instrument housings, telecommunications equipment, and computing hardware. Small sizes enable dense fastening patterns in compact devices, while EMI considerations favor non-magnetic fasteners.
Automotive Components
Interior trim, exterior emblems, under-hood components, and structural brackets. Corrosion resistance extends service life, while the clean appearance meets aesthetic requirements for visible applications.
Chemical Processing
Valve assemblies, pump housings, reactor vessels, and piping systems. 304 provides adequate resistance for many process chemicals, though material compatibility must be verified for specific environments.
Material Grade Comparison: When to Choose 304 vs. Alternatives
Understanding Grade 304’s position among stainless steel options helps optimize fastener selection for specific requirements.
- 18% Cr, 8% Ni composition
- Excellent general corrosion resistance
- Good mechanical properties to 800°C
- Non-magnetic when annealed
- Widely available, cost-effective
- Suitable for most indoor/outdoor use
- Good machinability and formability
- 16% Cr, 10% Ni, 2% Mo composition
- Superior chloride corrosion resistance
- Marine environment applications
- Chemical processing equipment
- Higher cost than 304
- Better performance in acids
- Required near coastal installations
- 12% Cr, minimal nickel
- Martensitic, can be hardened
- Magnetic properties
- Lower corrosion resistance than 304
- Higher strength when heat-treated
- More economical option
- Limited chemical resistance
The choice between these grades depends on environmental exposure, mechanical requirements, and budget constraints. For most applications not involving marine environments or aggressive chemicals, 304 represents the optimal balance. When chloride exposure exceeds 304’s capabilities, the additional cost of 316 provides necessary insurance against premature failure.
Strength Classes and Mechanical Properties
Unlike carbon steel fasteners that use numbered property classes (8.8, 10.9, 12.9), stainless steel fasteners follow a different classification system defined by ISO 3506. The designation format uses a letter-number-number sequence, such as A2-70.
Decoding Stainless Steel Fastener Markings
The first component indicates the steel group:
- A1: Austenitic steel with <12% nickel (lower grade)
- A2: Austenitic steel with ~18% Cr, ~8% Ni (equivalent to 304)
- A3: Austenitic steel with specific composition requirements
- A4: Austenitic steel with molybdenum addition (equivalent to 316)
- A5: Austenitic steel with different composition
The second component indicates the strength class:
- -50: 500 N/mm² minimum tensile strength (annealed condition)
- -70: 700 N/mm² minimum tensile strength (work-hardened)
- -80: 800 N/mm² minimum tensile strength (work-hardened)
Most allen head bolts and cap head machine screws in 304 stainless steel carry A2-70 designation. The “70” indicates the material has been work-hardened during manufacturing to achieve 700 N/mm² tensile strength—substantially higher than annealed material but without requiring heat treatment that would sensitize the steel.
| Property | A2-50 (Annealed) | A2-70 (Work-Hardened) | A2-80 (Work-Hardened) |
|---|---|---|---|
| Tensile Strength (min) | 500 N/mm² | 700 N/mm² | 800 N/mm² |
| Yield Strength (min) | 210 N/mm² | 450 N/mm² | 600 N/mm² |
| Elongation (min) | 40% | 20% | 15% |
| Hardness Range | 130-180 HB | 180-250 HB | 220-300 HB |
Manufacturing Quality: What Separates Premium from Standard Fasteners
Not all cap head machine screws claiming DIN 912 compliance and Grade 304 material deliver equivalent performance. Manufacturing quality significantly affects dimensional accuracy, material properties, and long-term reliability.
Cold Heading vs. Machining
Most cap head screws up to M12 are manufactured by cold heading—a process that forms the head and socket by forcing wire or rod material through progressive dies at room temperature. This work-hardens the material, improves grain flow, and creates fasteners with superior strength compared to machined alternatives. The cold working process naturally achieves the A2-70 strength classification without additional heat treatment.
Larger sizes (M16 and above) may be hot-forged or machined from bar stock due to the forming forces required. While these methods produce functional fasteners, they may not exhibit the same degree of work-hardening or optimal grain structure as cold-headed parts. Quality manufacturers carefully control these processes to ensure consistent properties regardless of forming method.
Thread Rolling vs. Thread Cutting
Thread formation method significantly impacts fatigue resistance and stress concentration. Rolled threads, formed by displacing material rather than removing it, create a work-hardened surface with continuous grain flow following the thread profile. This results in threads approximately 30% stronger in fatigue than cut threads with severed grain structure.
The rolled thread process also creates a slight compressive residual stress in the thread roots—the location of maximum stress concentration. This compressive stress must be overcome by tensile loading before cracks can initiate, effectively providing a built-in safety factor against fatigue failure.
Surface Finish and Passivation
After forming, quality 304 stainless steel fasteners undergo passivation—a chemical treatment that removes free iron contamination and enhances the natural chromium oxide layer. This process doesn’t add material or create a coating; it optimizes the existing passive layer for maximum corrosion resistance.
The surface finish affects both appearance and performance. Smoother finishes reduce friction coefficients between threads, allowing more of the applied torque to generate clamping force rather than being consumed by friction. However, excessively smooth finishes may reduce the friction necessary for self-locking behavior.
